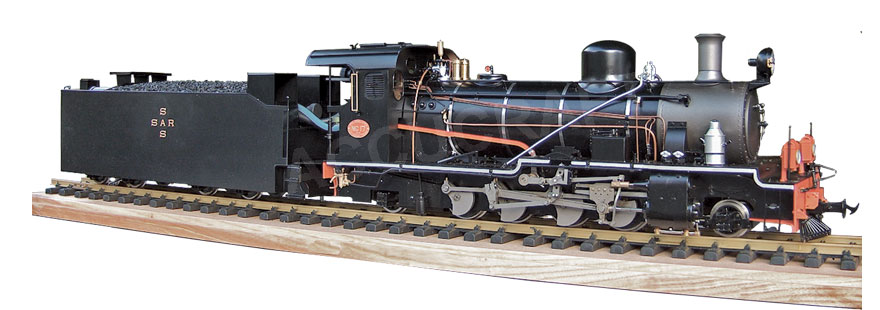

NG15 SOUTH AFRICAN RAILWAYS 2-8-2

The S.A.R. Class NG 15 2-8-2s were designed by the South African Railways and delivered in batches between 1931 and 1958, eleven were built by Henschel and ten by Franco-Blege. They were used by the Otavi Mining and Railway Company and the Tsumeb Copper Corporation. The Class was a development of the Otavi Class Hd 2-8-2 and SAR Class NG 5 locomotives and featured a Krauss-Helmholtz bogie linking the front pony truck with the leading driven axle which allowed the locos to negotiate tight curves. Displaced from their original work in the 1960s all the class ended up in S.A.R. ownership before finally being withdrawn in the 1980s. Thirteen members of the class have been preserved, five of them in Britain with two of these destined to work the newly rebuilt Welsh Highland Railway.

The model is internally gas fired with a twin flue boiler. The boiler is fitted with a water gauge glass which will allow for continuous running using the boiler filler system . The model is gauge adjustable from 32mm (O gauge) to 45mm (1 gauge) and has insulated wheels as standard. The axles run in bronze bearings and all the rods and valve gear are manufactured from stainless steel. The cab roof opens to give access to the gauges and lubricator filler. The boiler is fitted with a water blow down valve and the displacement lubricator has an under floor drain valve. The model is built from stainless steel and brass, and with the correct maintenance, will give a lifetime of pleasure.
Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
1:19 / 45 mm
Brass & Stainless Steel
48 in. (1.2 M)
36 in. (915 mm)
5 in. (135 mm)
6.75 in. (170 mm)
Features
Butane fired
Twin flue
80 PSI working pressure
Simplidied Walschaerts valve gear
Reverse lever
Safety valves
Pressure gauge
Water gauge glass
Boiler water feed valve
Steam regulator
Lubricator with under floor drain valve
Hot water return valve for tender
Gas tank in warm water tank
Hand pump in warm water tank
Models

S19-7

2-8-2 SAR, Satin Black
Butane Fired, Live Steam



†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
