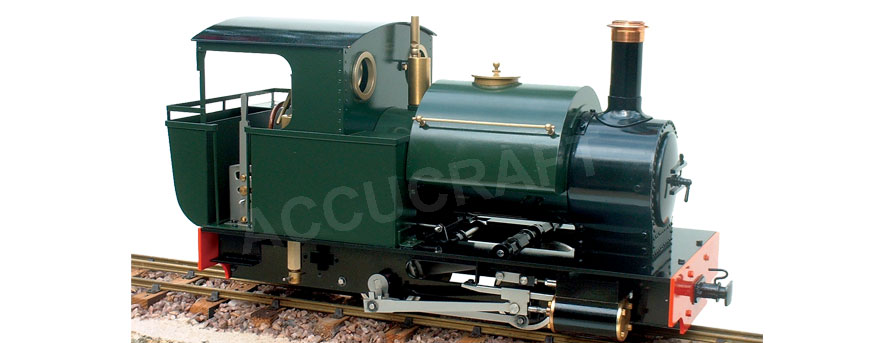

MORTIMER 0-4-0ST

Now re-introduced to the range, Mortimer is a freelance 0-4-0 saddle tank locomotive with design inspirations from Avonside and Peckett.

The loco is internally gas fired with a centre flue boiler. The model is gauge adjustable from 32mm ('O' gauge) to 45mm ('1' gauge) and has insulated wheels as standard. The axles run in bronze bearings and all the rods and valve gear are manufactured from stainless steel. The revised version will be fitted with our standard chopper couplings (not as illustrated).

The engine is available either in manual or radio control versions. The cab roof flips up and over sideways to give access to the gas, water and lubricator fillers. The boiler is fitted with a water level check valve and the displacement lubricator has an under floor drain valve.

The model is built from stainless steel and brass, and with the correct maintenance, will give a lifetime of pleasure.
Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
1:19 / 45 (32) mm Adjustable
Brass & Stainless Steel
24 in. (0.6 M)
11.25 in. (284 mm)
4.5 in. (116 mm)
6.25 in. (160 mm)
Features
Butane fired
Centre flue boiler
60 PSI working pressure
Piston valve
Simplidied Stephenson's valve gear
Reverse lever
Safety valves
Pressure gauge
Water gauge glass
Gas regulator Steam regulator
Lubricator drain valve
Models

S19-22B

Mortimer 0-4-0ST
Black
Butane Fired, Live Steam


S19-22BU

Mortimer 0-4-0ST
Blue
Butane Fired, Live Steam


S19-22G

Mortimer 0-4-0ST
GWR Green
Butane Fired, Live Steam


S19-22R

Mortimer 0-4-0ST
LMS Maroon
Butane Fired, Live Steam



†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
