SANDY RIVER & RANGELEY LAKES 0-4-4 FORNEY #6, LIVE STEAM
PRINT FRIENDLY

The Portland Company constructed 0-4-4 Forney #5 in 1891 for the Sandy River Railroad. The locomotive was named “N.B. Neal” and operated this way until 1908 when the Sandy River, Franklin & Megantic, Philips & Rangeley, along with their respective subsidiary railroads merged to form the Sandy River & Rangeley Lakes. At this time the loco was renumbered to SR&RL #6. In 1925 the loco was sold to the Kennebec Central, becoming their #4. She was again sold in 1933 to the Wiscasset, Waterville & Farmington as their #9. After the WW&F railroad was abandoned in 1936-‘37, it was purchased and stored near Putnam, Connecticut.

In December 1994, an agreement was reached with the estate for WW&F #9 and its return to Maine for eventual restoration. Over the course of several years the loco was restored and is now featured in regular excursion over a restored section of the railroad.

Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
7/8ths / 45 mm
Brass & Stainless Steel
48 inches
22.1 in. (562 mm)
6.1 in. (155 mm)
8.7 in. (221 mm)
Features
Butane fired
Copper boiler
Ceramic burner
60 psi working pressure
Two cylinders
Full working Stephenson valve gear
Safety valve
Forward/Reverse Johnson bar
Hand pump
Lubricator
Water sight glass
Pressure gauge
Models

B77-570

SR & RL 0-4-4 Forney #6, Unlettered
Butane Fired, Live Steam


B77-571

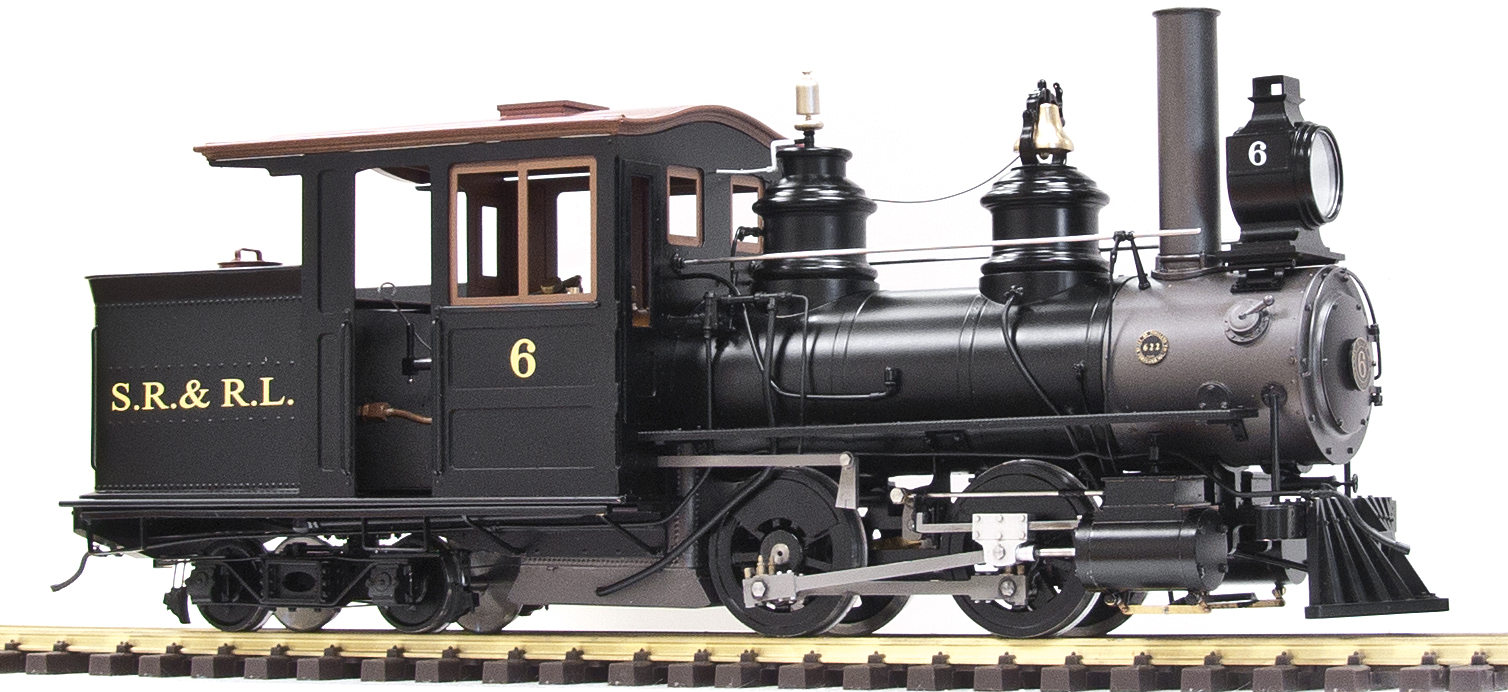

SR & RL 0-4-4 Forney #6
Butane Fired, Live Steam


B77-572

WW&F 0-4-4 Forney #9
Butane Fired, Live Steam



†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
