USRA MIKADO 2-8-2, LIVE STEAM
PRINT FRIENDLY

Aster Hobby and Accucraft Trains are proud to officially announce two new gauge one locomotive kits coming out this year.

Coming this August 2018, we will be releasing an improved version of Aster’s USRA Light Mikado 2-8-2. The original Aster Light Mikado was produced in 1999 and was offered in a basic version with available upgrades. See the list of new features below that have been added to this new updated design. Production quantity will be limited to 60 units.

Directly following the Light Mikado, we will introduce the brand new Aster USRA Heavy Mikado 2-8-2, with delivery planned for November 2018. This model will share many of the same improved features as the Light Mikado but with the larger boiler casing, larger smokebox and cab of the Heavy Mikado. Production quantity limited to 160 units.

Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
Weight
Driving Wheel
Pilot and Trailer Truck Wheel
Tender Truck wheel
Clyinder
Boiler Type
Tender

Fuel
1:32 / 45 mm
Brass & stainless steel
2 M
30.32 in (Engine 454 mm + Tender 304 mm)
4.02 in (102 mm)
6.49 in (164.8 mm)
16.53 lbs (Engine 5.5 kg + Tender 2 kg)
1.97 in (50 mm)
1.02 in 1.34 in (26 mm 34 mm)
1.02 in (26 mm)
2 Clyinders (Bore 13 mm Stroke 20 mm)
Smoke tube type (B type)
Hand operation pump (Bore 11 mm Stroke 12 mm), Blow down valve
Methylated alcohol
Features
Two safety valves
Water gauge
Pressure gauge
Throttle
Blower valves
By-pass valve
Blow-down valve
Walschaert's valve gear (lever type reverse)
Roscoe displacement lubricator
400 cc water capacity at 70% full
500 cc water tank capacity
300 cc fuel capacity at 80% full
Axle driven pump
New Features of the Aster Accucraft Light Mikado:
Cast-Iron Driver Wheels
Fully equalized chassis
Stainless steel machined driving rods
Axle pump with additional 20% capacity from previous option
Washout plug for the water gauge
Newly designed tender
Kingston valve in water tank
Increased water capacity (450cc)
Increased fuel capacity (300cc)
Detachable fuel tank
Detachable roof
Many newly designed aesthetic details added around smokebox, front buffer, and boiler case.
Models
Light Mikado
AST-103-0K
USRA Mikado 2-8-2, Undecorated, Black, Alcohol Fired, Kit

AST-103-0R
USRA Mikado 2-8-2, Undecorated, Black, Alcohol Fired, Ready To Run

AST-103-1K
USRA Mikado 2-8-2, New York Central Railroad, Alcohol Fired, Kit

AST-103-1R
USRA Mikado 2-8-2, New York Central Railroad, Alcohol Fired, Ready To Run

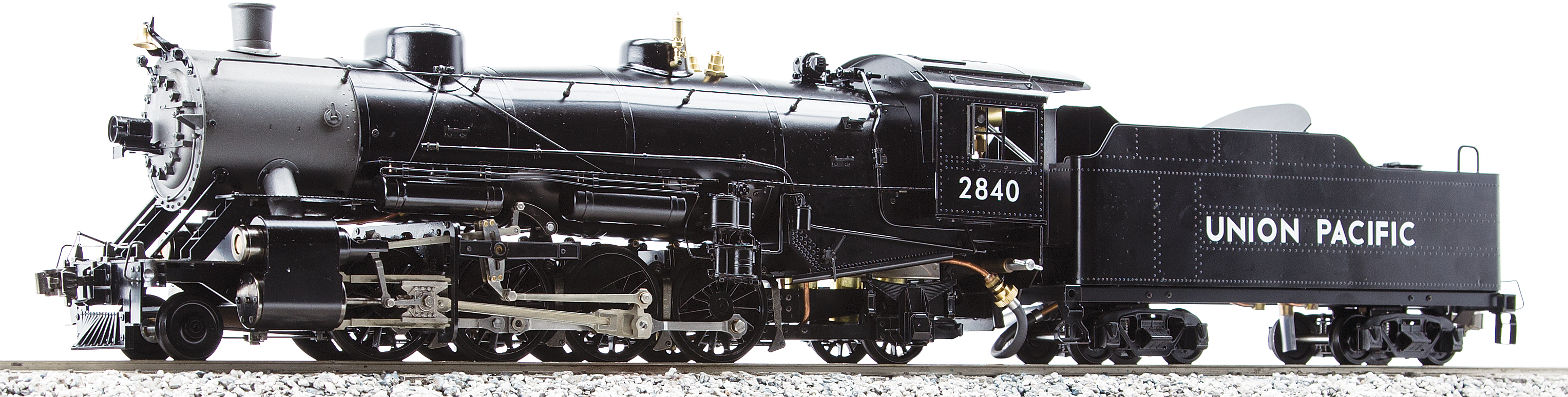

AST-103-2K
USRA Mikado 2-8-2, Union Pacific Railroad, Alcohol Fired, Kit

AST-103-2R
USRA Mikado 2-8-2, Union Pacific Railroad, Alcohol Fired, Ready To Run

AST-103-3K
USRA Mikado 2-8-2, Baltimore & Ohio Railroad, Alcohol Fired, Kit

AST-103-3R
USRA Mikado 2-8-2, Baltimore & Ohio Railroad, Alcohol Fired, Ready To Run


Heavy Mikado
AST-105-1K
USRA Mikado 2-8-2, Undecorated, Black, Alcohol Fired, Kit

AST-105-1R
USRA Mikado 2-8-2, Undecorated, Black, Alcohol Fired, Ready To Run

AST-105-2K
USRA Mikado 2-8-2, Erie Railroad, Alcohol Fired, Kit

AST-105-2R
USRA Mikado 2-8-2, Erie Railroad, Black, Alcohol Fired, Ready To Run

AST-105-3K
USRA Mikado 2-8-2, CB&Q Railroad (Burlington Route), Alcohol Fired, Kit

AST-105-3R
USRA Mikado 2-8-2, CB&Q Railroad (Burlington Route), Alcohol Fired, Ready To Run

AST-105-4K
USRA Mikado 2-8-2, Milwaukee, Alcohol Fired, Kit

AST-105-4R
USRA Mikado 2-8-2, Milwaukee, Alcohol Fired, Ready To Run

AST-105-5K
USRA Mikado 2-8-2, Southern Railroad, Alcohol Fired, Kit

AST-105-5R
USRA Mikado 2-8-2, Southern Railroad, Alcohol Fired, Ready To Run

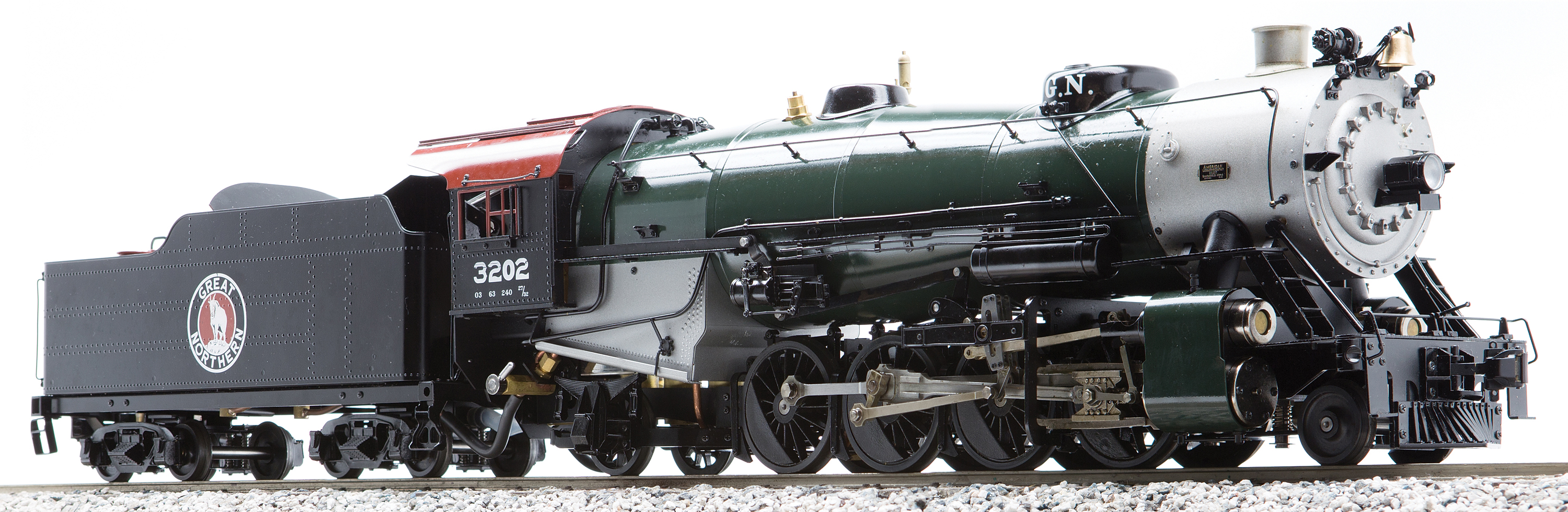

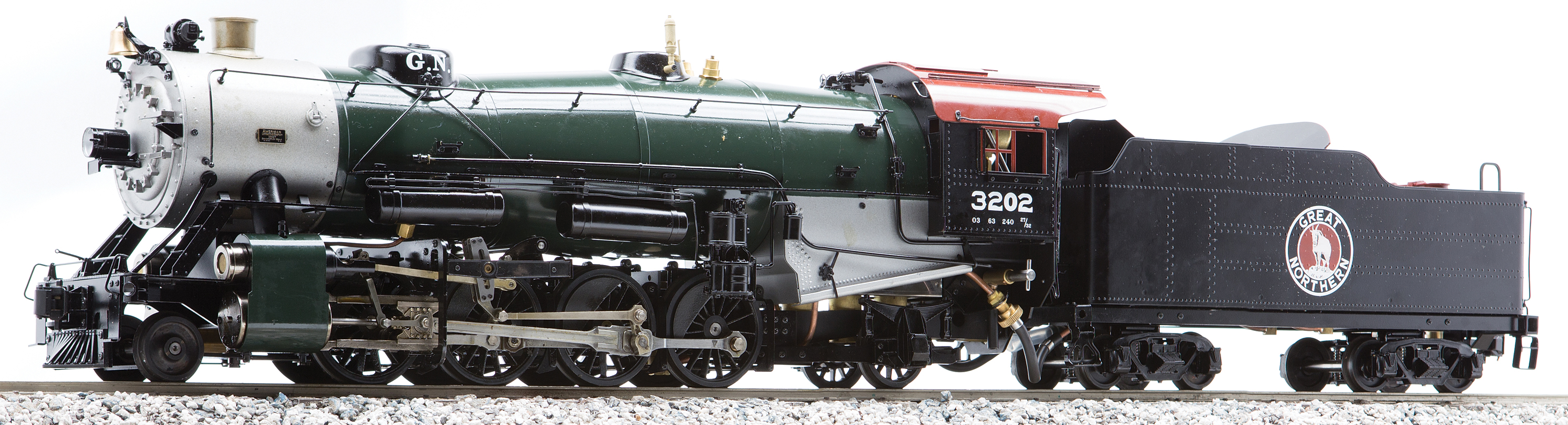

AST-105-6K
USRA Mikado 2-8-2, Great Northern, Alcohol Fired, Kit

AST-105-6R
USRA Mikado 2-8-2, Great Northern, Alcohol Fired, Ready To Run




†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
