JACKSON SHARP COACH
AMS
[PRINT FRIENDLY]











Accucraft’s D&RGW passenger cars were originally built by the Jackson Sharp company in the early 1880’s. The D&RG rebuilt them over the years with larger windows, and other improvements on an as needed basis! In the 1920’s the coaches went through the car shops again to have more improvements made! This included having the bodies and platforms lowered, under-frame reinforced, and extension side bearings installed. Accucraft’s models are of the later rebuilt cars.

The C&S and RGS all acquired these cars over the years, and the D&RG, and the D&RGW rebuilt these cars so many times that today it can be hard to tell how many changes were done. If you would like to see a very nice restoration of these coaches visit the Colorado State Railway Museum in Golden Colorado.
Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
Weight
1:20.3 / 45 mm
Plastic body, Brass casting
4 ft.
27.5 in. (699 mm)
5 in. (127 mm)
7.38 in. (188 mm)
6 lbs. (2.73 kg)
Features
Die-cast sprung trucks
Metal wheels
Full interior details
Full underbody details
Operating doors
Working knuckle couplers
Interior lighting
Models
AM54-010BA
JS COACH - Unlettered Bumble Bee Yellow Single Stripe, 1 Car
AM54-010GA
JS COACH - Unlettered Green, 1 Car
AM54-010RA
JS COACH - Unlettered Red, 1 Car
AM54-011

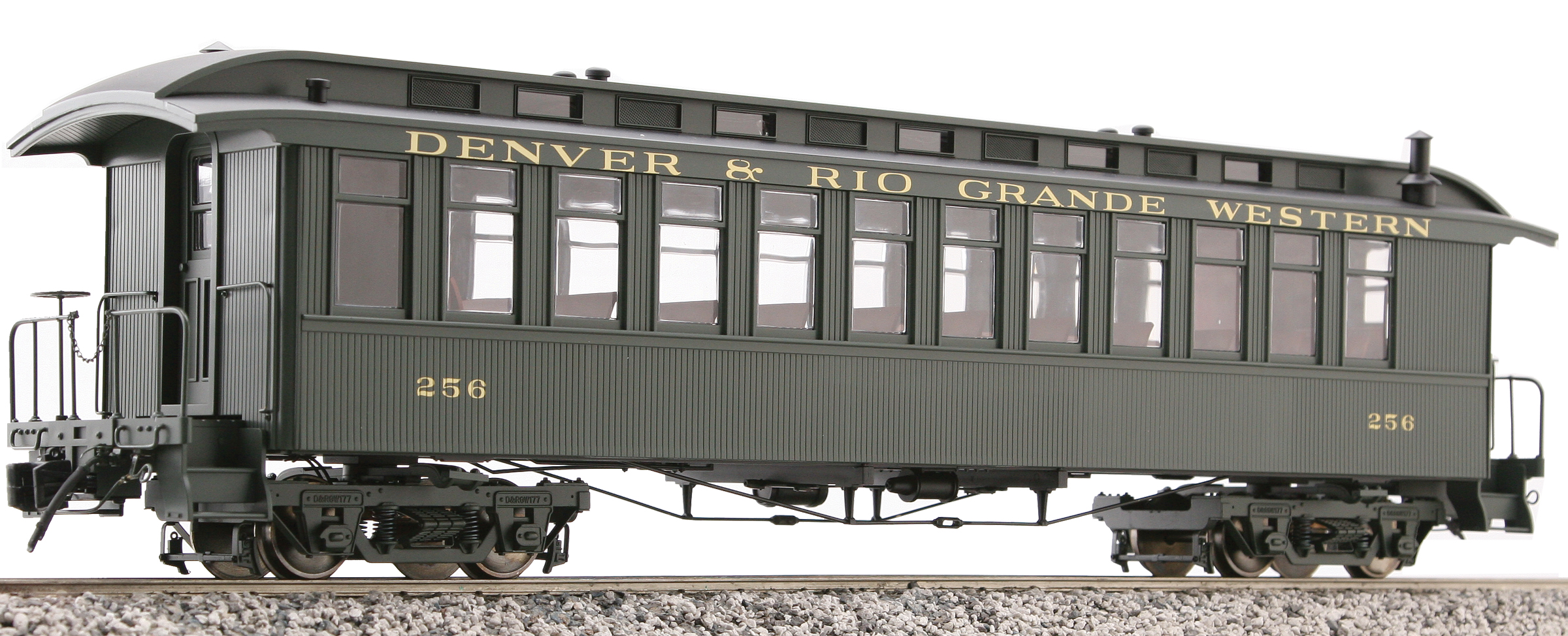

JS COACH - D&RGW Green, A)257 B)281 C)285 D)302
AM54-012

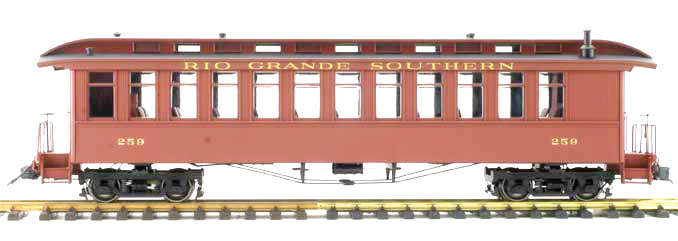

JS COACH - RGS Red, A)253 B)254 C)255 D)258
AM54-013

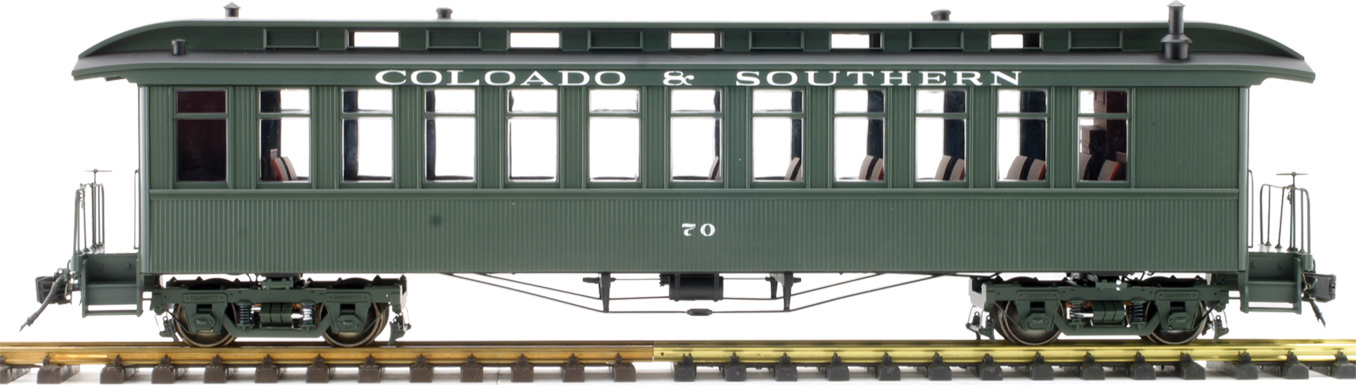

JS COACH - C&S Green, A)71 B)73 C)74 D)77
AM54-014
JS COACH - D&RG Red, A)274 B)284 C)306 D)309
AM54-015
JS COACH - D&RGW Bumble Bee Yellow Double Stripe, A)280 B)306 C)320 D)284
AM54-016

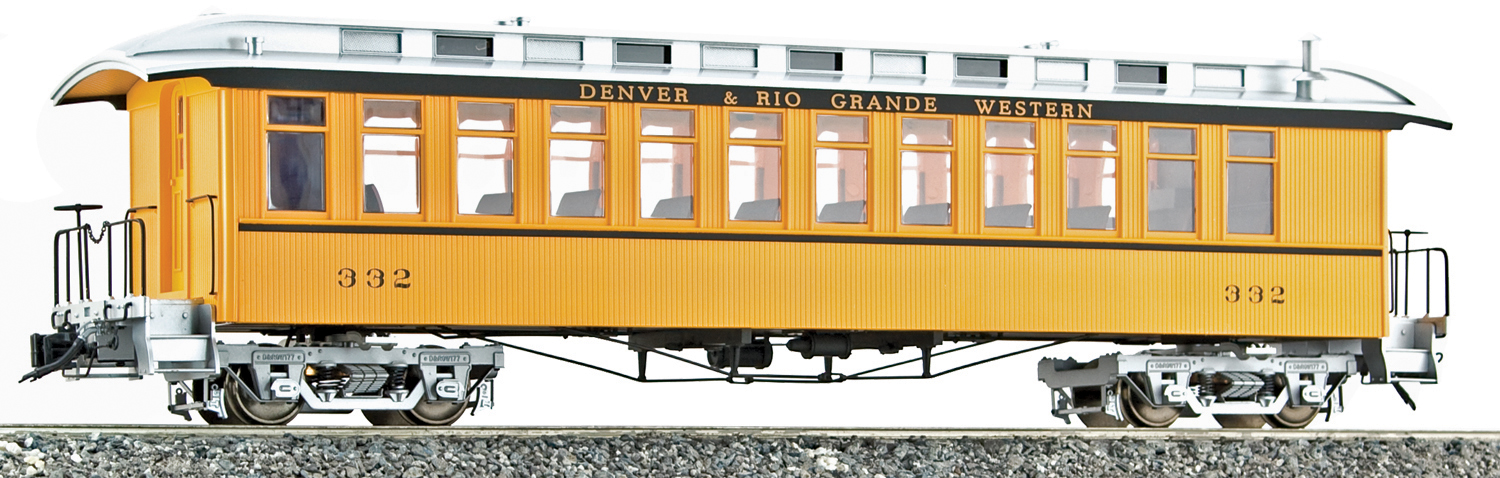

JS COACH - D&RGW Bumble Bee Yellow Single Stripe, A)330 B)331 C)332 D)333


†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
