D&RGW K-37 2-8-2, LIVE STEAM
ACL
[PRINT FRIENDLY]

The K-37's were originally built as standard gauge 2-8-0's by Baldwin in 1902 Ten of these engines were converted to narrow gauge between 1928 to 1930 by the D&RGW. New chassis were created, and the boilers and tenders were used over again on the narrow gauge versions. D&RGW numbered these engines 490 to 499, and most survive today on display. These engines were not as popular as the K-36's. The reason for this was the K-36 was easier on the crews and the track as well. However in model form the K-37 is the largest locomotive that can be built in 1:20.3 scale The huge boiler allows runs of well over an hour without ever injecting water. This new Live Steam version is also cross ported so that valve gear is in prototypical position for forward and reverse. This large model is extremely powerful , but unlike the prototype is very easy and rewarding to run.
Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
1:20.3 / 45 mm
Brass & Stainless Steel
4 ft.
42 in. (1066 mm)
6.25 in. (158 mm)
8 in (203 mm)
Features
Butane fired
60 psi Working pressure

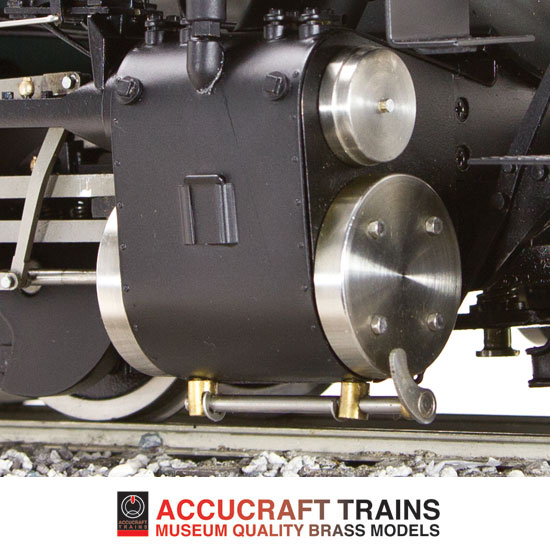

D-valve

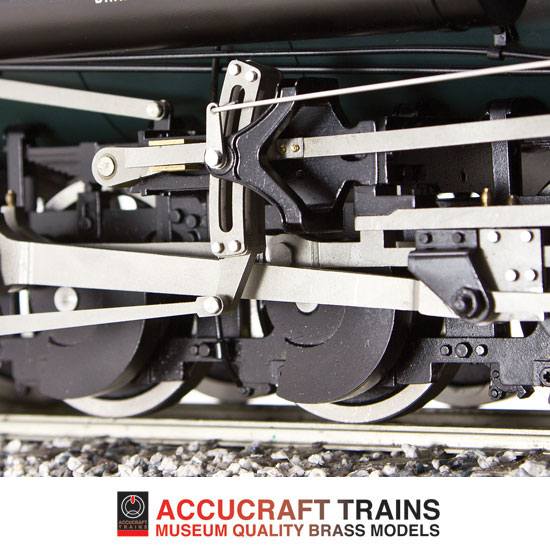

Walschaerts valve gear

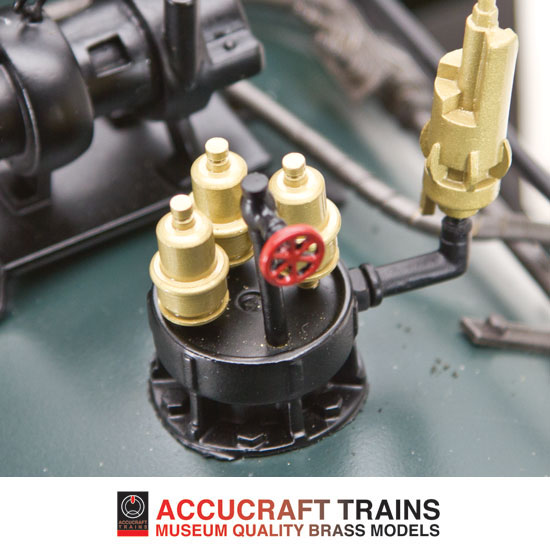

Safety valves
Pressure gauge
Water level glass
Adjustable lubricator
Boiler feed

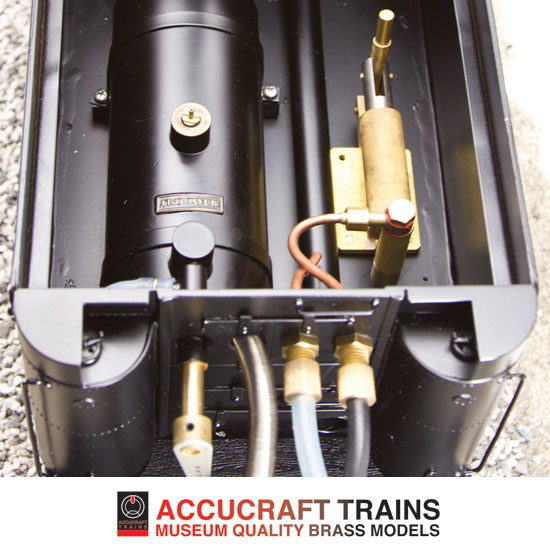

Tender water pump
  1. Models
  2. Gallery

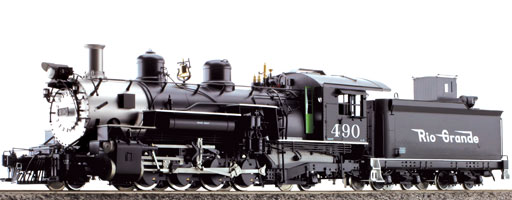

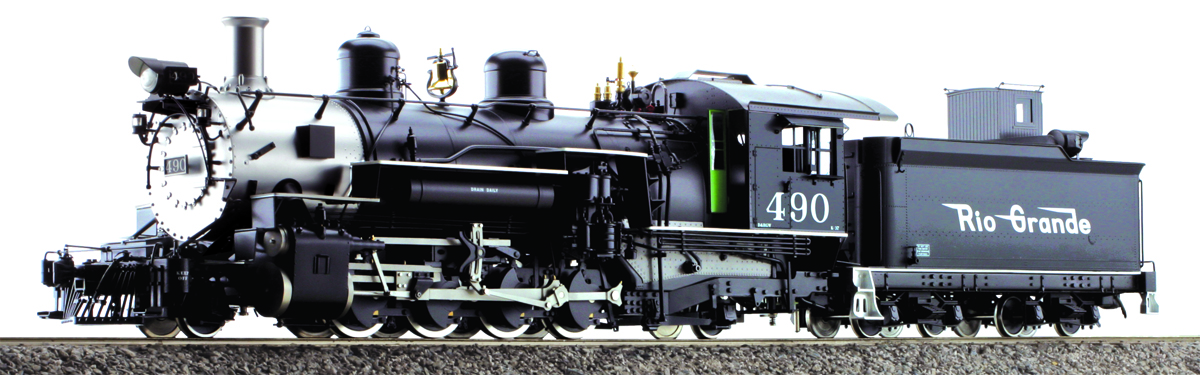

AL87-241

D&RGW K-37 2-8-2
#490 Flying Rio Grande
Butane Fired

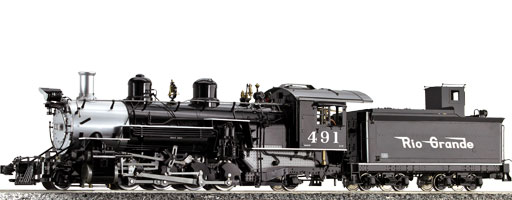

AL87-242

D&RGW K-37 2-8-2
#491 Flying Rio Grande
Butane Fired

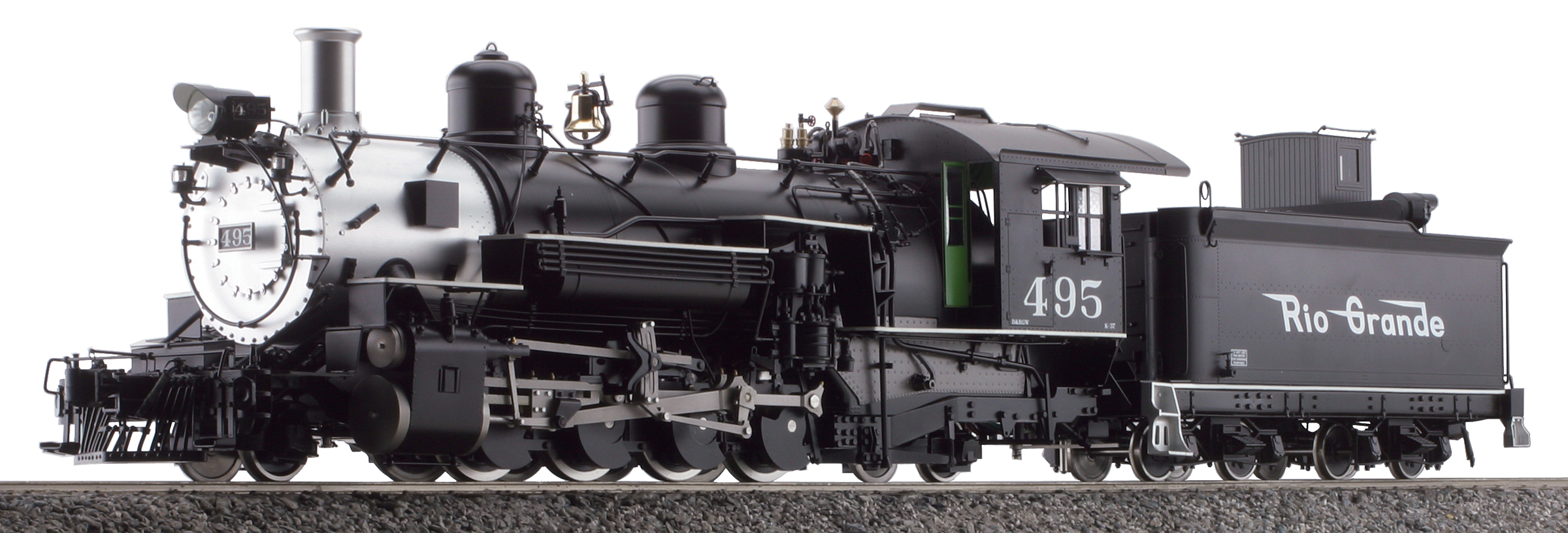

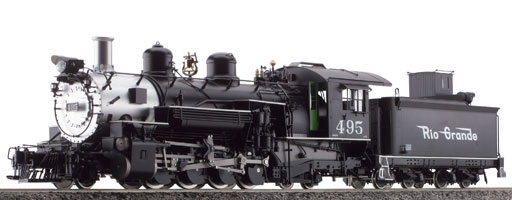

AL87-243

D&RGW K-37 2-8-2
#495 Flying Rio Grande
Butane Fired

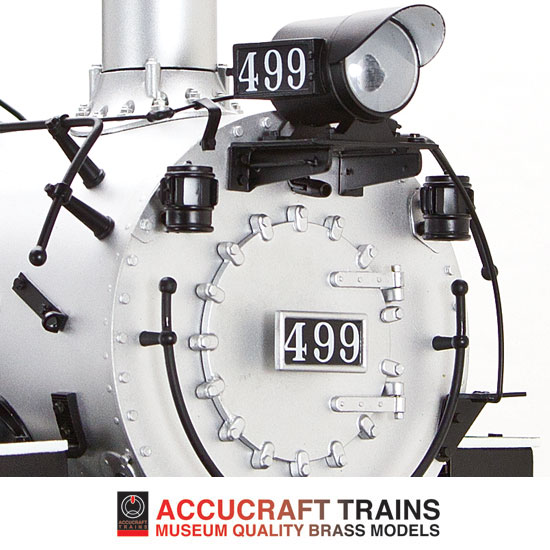

AL87-244

D&RGW K-37 2-8-2
#499 w/ Moffat Logo
Butane Fired



†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
