SOUTHERN PACIFIC 4-6-0, LIVE STEAM
ACL
[PRINT FRIENDLY]

Southern Pacific Narrow Gauge Number 8 and 9 were two of the last three remaining steam locomotives that worked the SP’s narrow gauge in western Nevada and Eastern California. These two locomotives were acquired from the Nevada California & Oregon Rail road in the late 1920’s. The two engines were different from one another in details such as cab placement, dome placement running boards and piping details! Both had the distinctive whale back tenders. These were fairly heavy modern narrow gauge engines. They had cylinders with 16” bore and a 20” stroke. The drivers were 44” diameter, and the engines weighed aprrox. 87,000 lbs.. Many excursions were run for the rail fans through the 1950’s. Both the 8 and the 9 were extensively photographed in their last years of operation! There are still many people around today that still fondly remember riding the SP narrow gauge!

Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
1:20.3 / 45 mm
Brass & Stainless Steel
4 ft.
34.15 in. (867.41 mm)
5.5 in. (139.7 mm)
8.0 in (152.4 mm)
Features
Butane Fired
Two cylinders
D-valve
Simulated Steven valve gear
Safety valve
Pressure gauge
Water filler valve
Throttle
Lubricator
Gas tank in tender
Hand operated water pump
Models

AC77-080

Southern Pacific 4-6-0
Unlettered, Black
Butane Fired, Live Steam


AC77-081

Southern Pacific 4-6-0
#8
Butane Fired, Live Steam

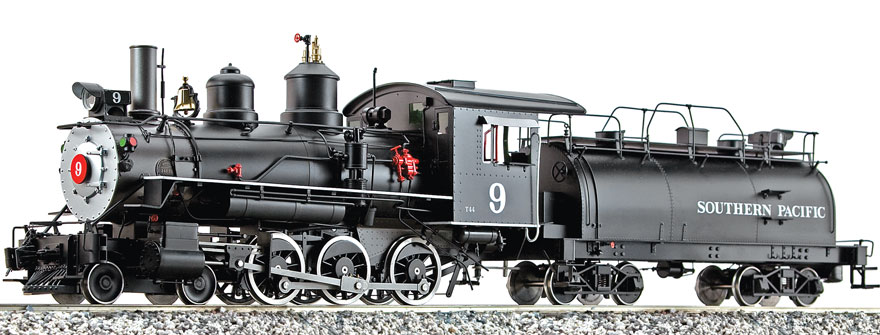

AC77-082

Southern Pacific 4-6-0
#9
Butane Fired, Live Steam



†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
